PROFESSIONAL ESP32-WROOM-32E SOCKET MODULE
58-Pin Socket Module
LS-W1-2323-58P-32E-N8
A compact and versatile ESP32 development platform built around a 58-pin socket in SMD & through-hole format, combining digital expansion, analog acquisition, programming and standard debug interfaces.
The public page uses the product-family code without a hardware revision suffix, so the page remains valid across future PCB revisions.
KEY FEATURES
ESP32-WROOM-32E8 MB Flash with integrated PCB antenna.
58-Pin SocketSMD & through-hole integration, 2.54 mm pitch.
16 GPIO ExpansionMCP23S17T-E/SS SPI I/O expander.
8-Channel ADCMCP3208T-CI/SL, 12-bit SPI ADC, 2.048 V reference.
Analog InputADC input range documented as 0 V to 3.3 V.
USB Type-CUART1 power + data interface.
Power Rails5 V input and regulated 3.3 V output.
13 ESP32 GPIODirect GPIO breakout from the ESP32.
RGB LEDAddressable WS2812 / NeoPixel LED.
Debug InterfacesProgrammer connector and JTAG connector.
UART23.3 V TTL UART2 header.
I²C3.3 V logic I²C interface.
PRODUCT VIEWS

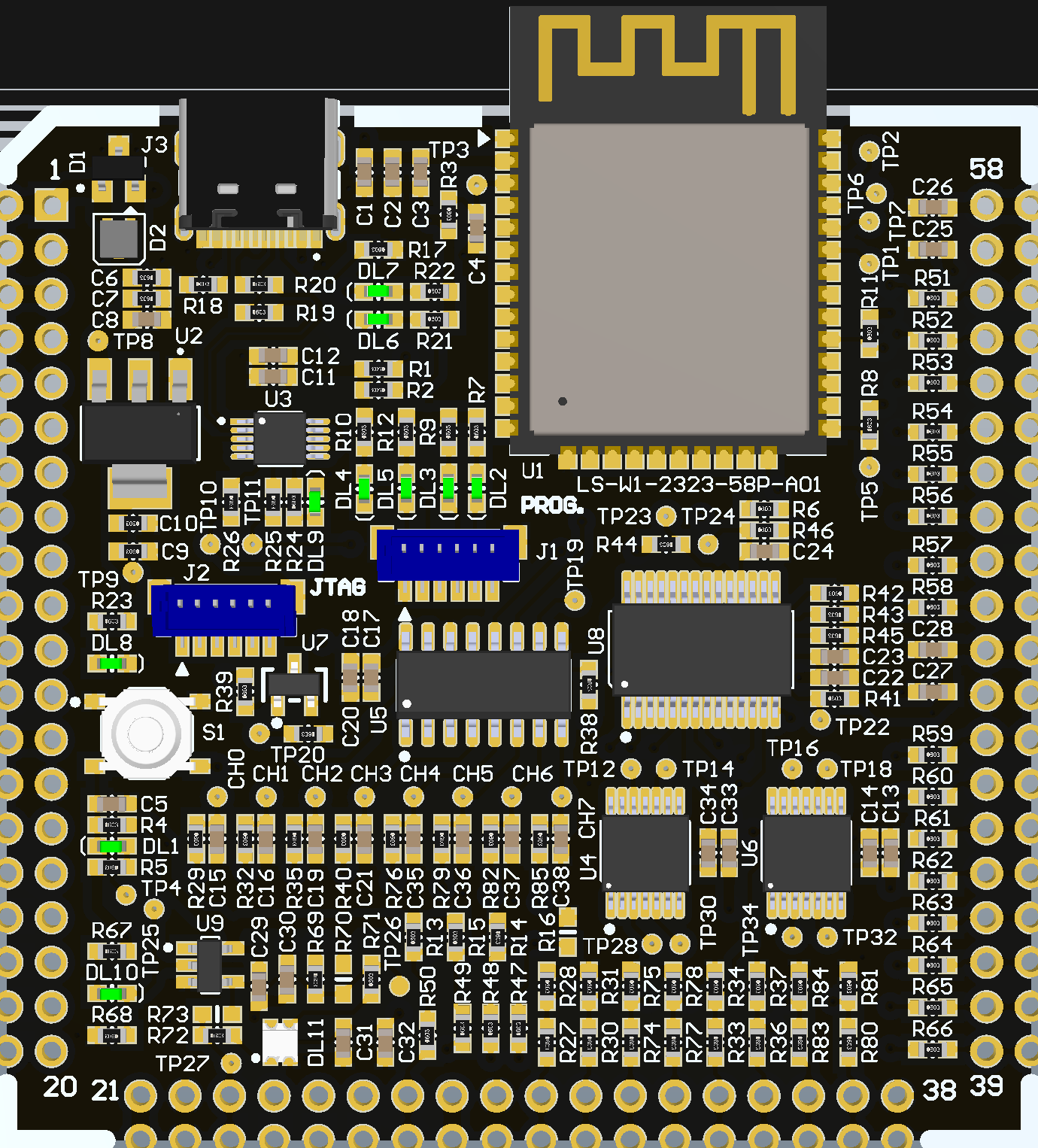

Top View

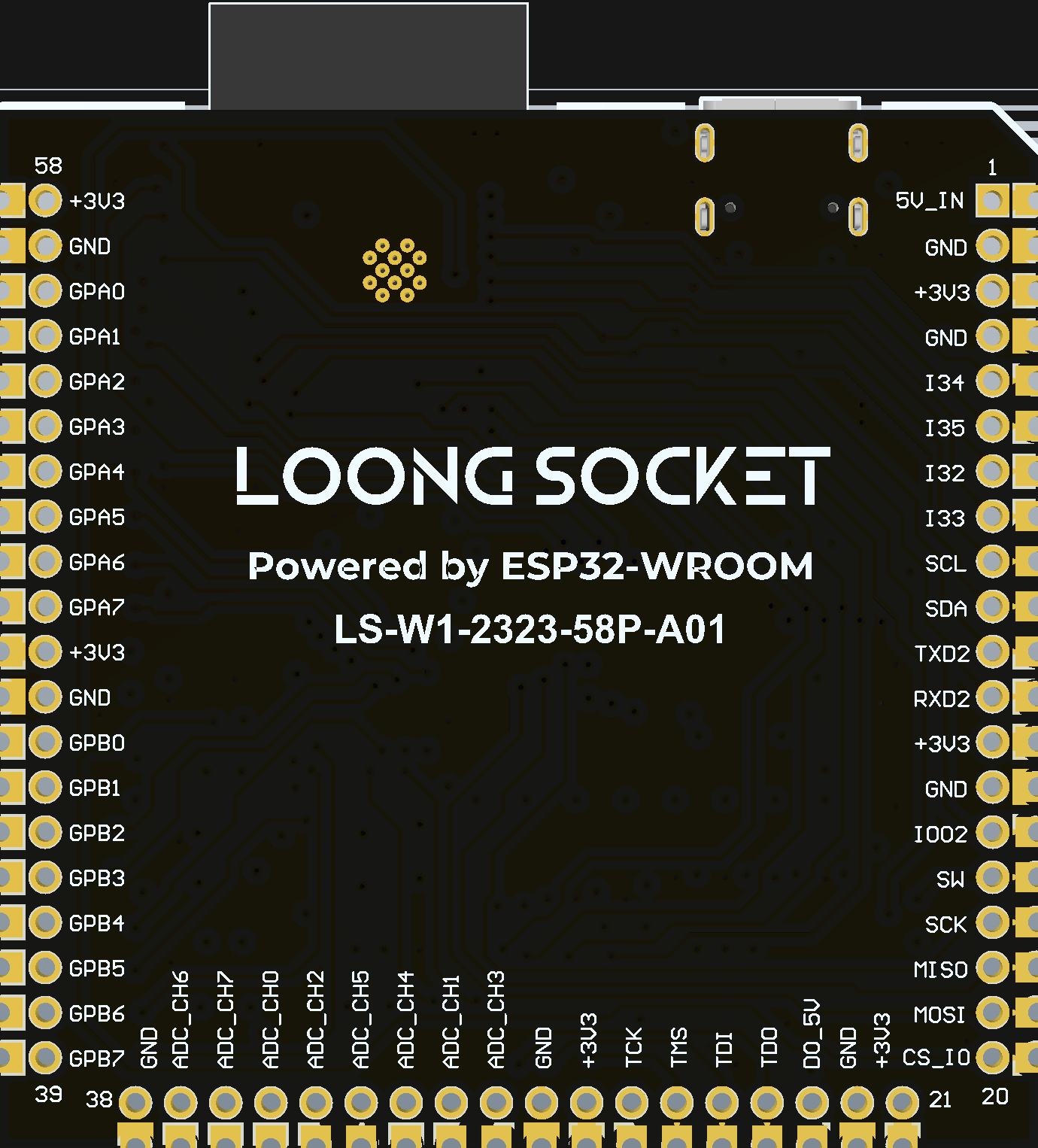

Bottom View
TECHNICAL SUMMARY
| Product family | LS-W1-2323-58P-32E-N8 |
| Main module | ESP32-WROOM-32E · 8 MB · PCB antenna |
| Socket format | 58 pins · SMD & TH · 2.54 mm pitch |
| Documented format size | 2.3 × 2.3 in |
| SPI GPIO expander | MCP23S17T-E/SS · 16 GPIO |
| External ADC | MCP3208T-CI/SL · 8 channels · 12-bit · SPI |
| ADC reference | 2.048 V |
| ADC input range | 0 V to 3.3 V |
| USB | USB Type-C · UART1 · power + data |
| Interfaces | JTAG · Programmer · UART2 TTL · I²C |
